The Output Is Not the Skill: Embroidery Quality Is Determined by the Path, Not the .DST
In commercial embroidery workflows, the .DST file is often treated as the end goal. In reality, it is merely the final transmission format. The technical quality of embroidered output is determined upstream, during stitch engineering, not during file export.
Understanding this distinction is essential for consistent, production-grade results.
What a .DST File Actually Contains
A .DST (Data Stitch Tajima) file is a low-level machine instruction stream consisting primarily of:
- Relative X/Y stitch movements
- Jump commands
- Color-change/stop commands
- End-of-design markers
- A small fixed-size header (metadata such as stitch count and extents)
It does not retain:
- Object structure
- Stitch type definitions
- Underlay logic
- Density parameters
- Pull compensation values
- Pathing intent
- Fabric assumptions
A DST is a flattened execution artifact.
All engineering decisions are already resolved by the time it is generated.
This is why high-level editable formats (EMB, PXF, BE, SVG workflows, etc.) exist: they preserve parametric design structure. DST does not.
Digitizing Is Mechanical Engineering, Not File Conversion
The misconception that embroidery is “artwork → click → stitch file” is the root of most production failures.
Professional digitizing requires modeling textile behavior under mechanical stress. Each stitch is a structural event: needle penetration displaces fibers, increases localized tension, and shifts substrate geometry.
High-quality output is the result of deliberate choices in five primary engineering categories.
1. Stitch Type Architecture
Embroidery is constructed from foundational stitch systems:
- Run stitches (travel, placement, fine detail)
- Satin stitches (columns, lettering, borders)
- Tatami/fill stitches (areas and fields)
Each carries different tension dynamics and distortion profiles.
For example:
- Satin columns under ~1.2 mm risk collapse.
- Wide satins (> ~8 mm) require splits or fill substitution.
- Fill patterns introduce directional pull along stitch angle.
Stitch type selection is not aesthetic, it is structural.
2. Underlay Engineering
Underlay is foundational reinforcement.
It serves to:
- Stabilize substrate
- Counteract stretch
- Elevate top stitches
- Improve edge definition
Common systems include:
- Center run (narrow columns)
- Edge run (wider columns, edge stabilization)
- Zigzag (support for wide satins)
- Tatami underlay (large area stabilization)
Insufficient underlay leads to:
- Edge waviness
- Thread sinks (especially on fleece and towels)
- Distortion of lettering
Excess underlay leads to:
- Density overload
- Stiffness
- Thread buildup
Underlay must be calibrated relative to substrate response and top stitch density.
3. Density and Thread Geometry
Stitch density cannot be universal.
It must account for:
- Thread weight (40wt vs 60wt)
- Needle size
- Fabric weave
- Stabilizer type
- Desired tactile flexibility
Over-density causes:
- Needle heat
- Thread breaks
- Puckering
- Excessive production time
Under-density causes:
- Gapping
- Substrate show-through
- Reduced opacity
Density must balance optical coverage with mechanical stability.
4. Pull Compensation and Registration Control
Every stitch shortens material along its axis.
This is not optional. It is physics.
Pull compensation offsets this contraction by extending stitch boundaries outward so that final sewn dimensions approximate intended geometry.
Without proper compensation:
- Fill-to-border gaps appear
- Outlines fail to align
- Small lettering collapses
Push distortion (perpendicular expansion) must also be predicted in wide fills.
Compensation settings are not global. They vary by:
- Fabric elasticity
- Stitch direction
- Column width
- Stabilization method
5. Sequencing and Path Optimization
Embroidery is sequential.
Stitch order affects distortion accumulation.
Best practice typically includes:
- Stitching center-out to distribute tension
- Building structural elements before detail elements
- Controlling travel paths to reduce trims
- Managing jump stitch exposure
Particularly in caps and structured garments:
- Avoid initiating large fills at center seams
- Stitch bottom-up to counter gravity-induced distortion
- Manage trim interpretation (DST lacks explicit trim command)
Poor sequencing introduces:
- Registration drift
- Excess thread trimming
- Production inefficiency
- Edge misalignment
Why Auto-Digitizing Is Insufficient
Auto-digitizing engines primarily:
- Detect color regions
- Assign default stitch types
- Apply default underlay/density
- Generate automated pathing
They do not contextualize:
- End-use substrate
- Stabilizer configuration
- Machine trim thresholds
- Needle count constraints
- Production speed variables
- Hoop tension variations
They generate stitch placement, not stitch optimization.
Professional digitizing adjusts defaults based on material physics and run environment.
Substrate-Specific Examples

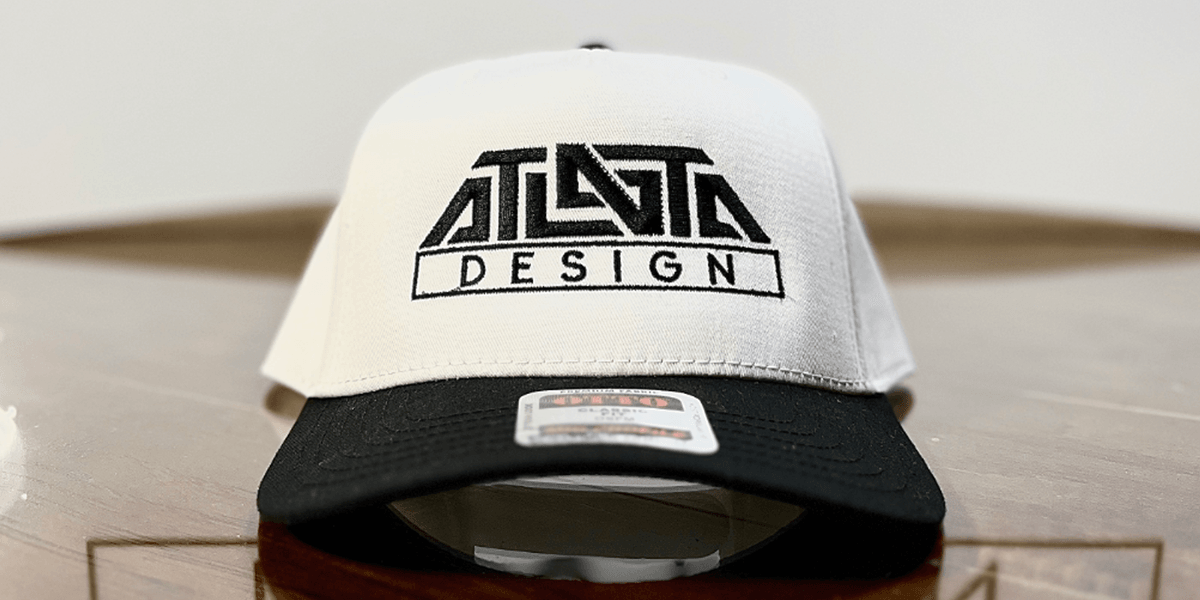

Caps
- Pronounced curvature
- Center seam interference
- High distortion under tension
- Requires center-run underlay for small lettering
- Sequencing must mitigate seam bulk
Performance Knits
- Stretch-reactive
- Low-density recommended
- Strategic compensation critical
- Over-stitching causes rippling
Terry Cloth / Towels
- High pile
- Stitches sink without topping
- Underlay must elevate design
- Density must compensate for loop absorption
Quality depends on anticipating these responses in advance.
Quality Is an Iterative Feedback Loop
Mastery in digitizing does not come from exporting hundreds of files.
It comes from structured testing:
- Adjust density ±5–10%
- Compare underlay variants
- Modify compensation on isolated shapes
- Track trim count and run time impact
- Measure distortion across fabrics
Engineering competence emerges through controlled iteration.
The Core Principle
Embroidery failure is rarely caused by a bad file format.
It is caused by insufficient stitch engineering.
A .DST file is simply the compression of decisions already made.
If those decisions were careless, the output will be careless.
If those decisions were engineered, the output will be engineered.
The file is not the skill.
The path, the deliberate mechanical reasoning behind every stitch, is the skill.
